3.38 Smart Control Panel

3.38.1 Overview

Combined web buttons and wireless control, this control panel in this project is able to control modules and read module values as well.

3.38.2 Test Code

3.38.2.1 Build Code

There are two ways to upload the code: directly open the code file we provide; or manually build blocks.

Directly open the code file we provide:

1. Click and choose Load from your computer

2. We have already downloaded the codes on computer desktop, so open the file and choose 7-38-intelligentConsole.sb3

Manually build blocks:

1. Initialize wifi and OLED module, set the name and passwords of the wifi

2. Set the values to be displayed through block

3. Define button names and functions through block

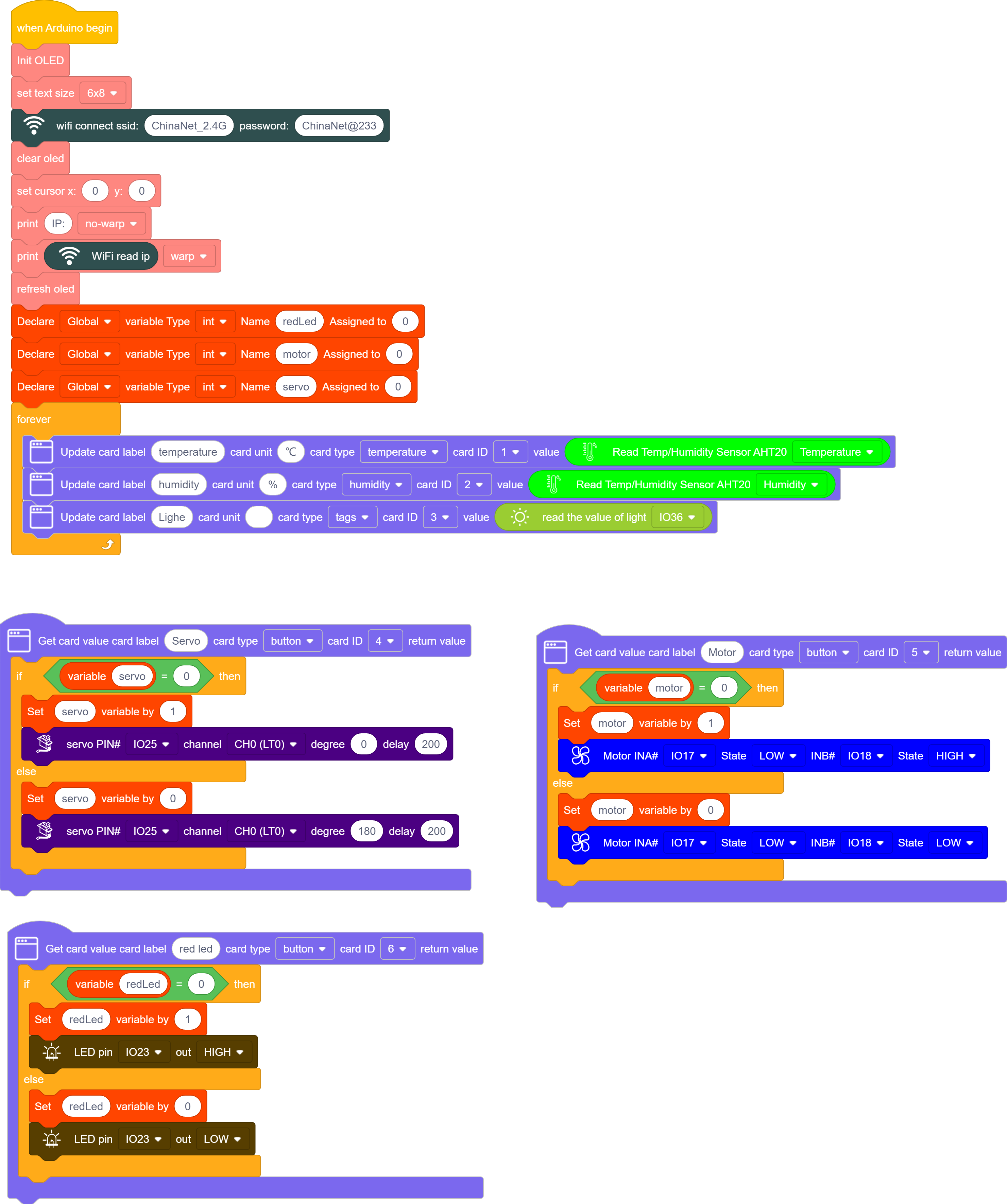

Complete Test Code

3.38.2.2 Test Result

Upload the code, and the OLED shows the IP address after connecting to wifi.

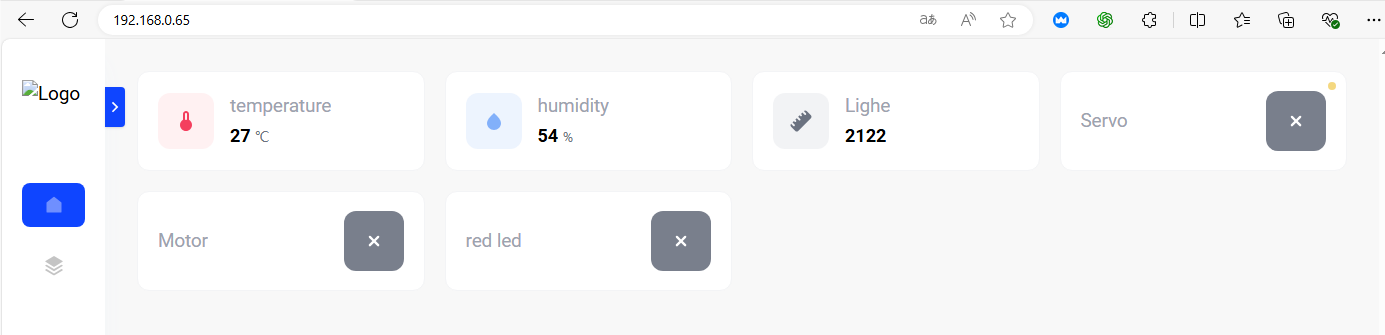

Connect your computer/mobile phone and ESP32 to the same wifi, and you can access the IP address to see the control page through your device.
