3.15 WS2818 RGB LED

3.15.1 Overview

WS2812 RGB LED is an external control LED integrating control circuit and light emitting circuit. It adopts single-line return-to-zero code communication, and supports 256 gray levels to display full-colors. The integrated chip inside each pixels efficiently stabilizes color output. So it is widely used in lighting, display and decoration.

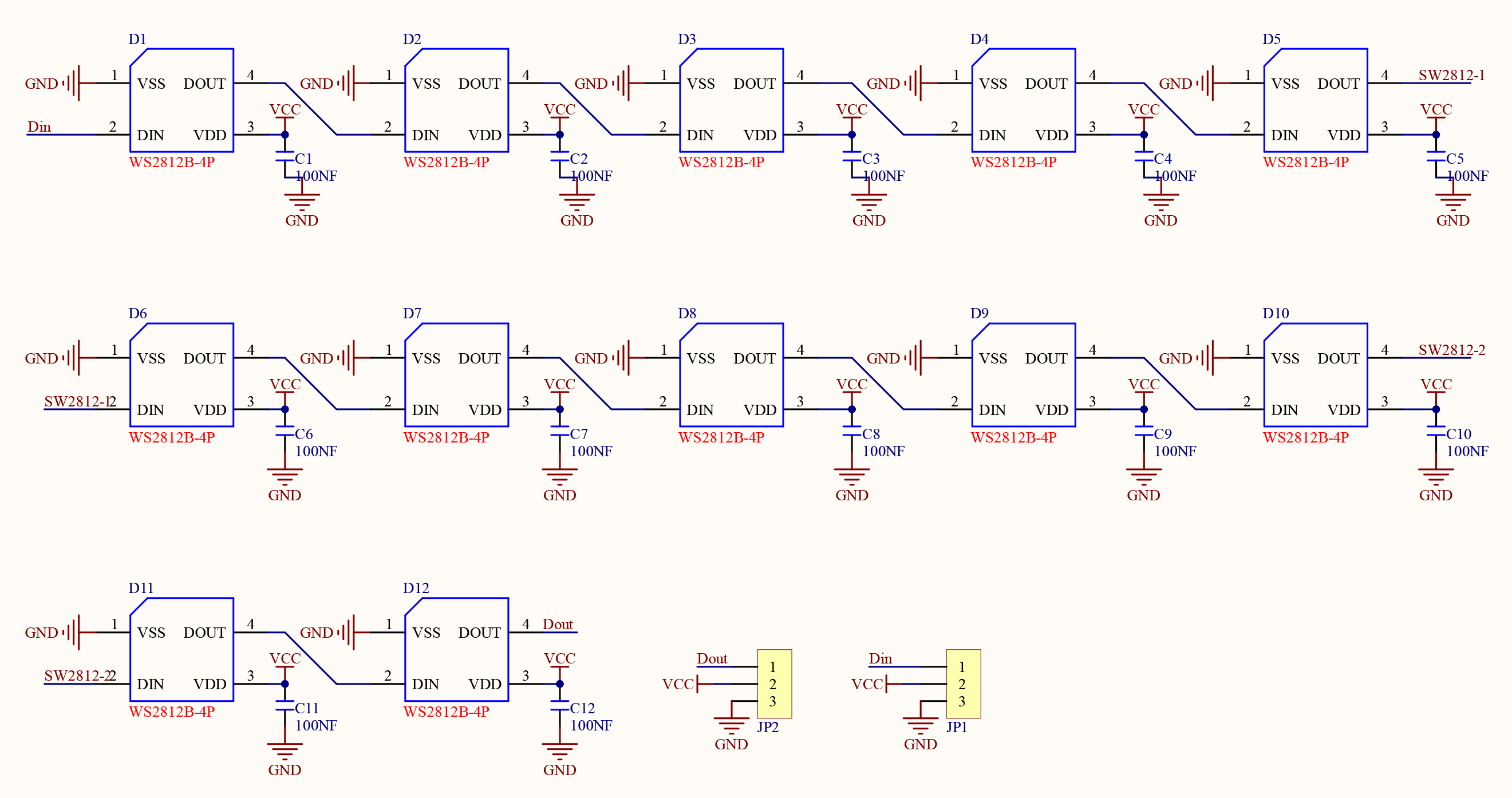

3.15.2 Schematic Diagram

6-15-2

From the Schematic Diagram, ws2812 connects and transmits data over a single wire, which is the communication method named single-bus return-to-zero code (single NZR). The data enters in serial through the DIN port, and each pixel receives and processes 24 bits data (R, G, B color channels with 8 bits each).

For detailed information of transmission mode, please refer the specification of ws2812.

3.15.3 Code Blocks

  1. 6-15

    This block initialize the ws2812 module. You only need to set its numbers and pin.

  2. j47

    This module appoints one certain ws2812 pixel to light up. You only need to input the ws2812 pixel number (starting from 0) and set its color.

  3. j48

    This block appoints a certain range of ws2812 pixels to light up. You only need to input two ws2812 pixel number (a starting and a ending pixel) and set their colors.

  4. j49

    This block sets colors of the LED. Three parameters (R, G, B) should be set.

  5. image-j50

    This block sets the brightness of ws2812 pixels. Its range is 0 ~ 255.

  6. image-j51

    This block turns off all ws2812 pixels.

  7. j52

    This block refreshes the state of each ws2812 pixel. Before every part that controls pixels, this block should be added after them. Otherwise, they are invalid settings.

3.15.4 Test Code

3.15.4.1 Build Code

There are two ways to upload the code: directly open the code file we provide; or manually build blocks.

Directly open the code file we provide:

  1. Click and choose Load from your computer

  1. We have already downloaded the codes on computer desktop, so open the file and choose 3-15-rgbLed.sb3

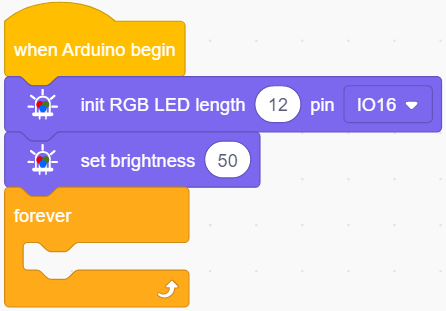

Manually build blocks:

  1. In events, find j1 block.

  2. In , find and put 6-15 underj1

  3. In , put 6-15 underj1 and set brightness to 50 to avoid glaring.

  4. In control, put j2 under 6-15

6-15

  1. In , put j47 into j2, and set pixel to 0 and color to red.

  2. In , add a j47 to refresh the above settings so that ws2812 will light up.

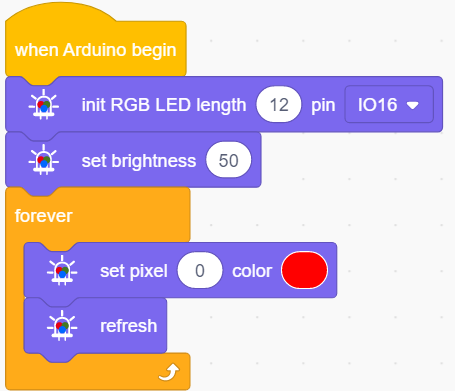

Complete Test Code

6-15

3.15.4.2 Test Result

After uploading code, the first pixel of ws2812 lights up in red.

3.15.5 Extension

Light up all LED circulating red, green, and blue.

3.15.5.1 Test Code

There are two ways to upload the code: directly open the code file we provide; or manually build blocks.

Directly open the code file we provide:

  1. Click and choose Load from your computer

  1. We have already downloaded the codes on computer desktop, so open the file and choose 3-15-rgbLed2.sb3

Manually build blocks:

  1. In events, find j1 block.

  2. In RGB, drag and put 6-15 under j1

  3. In RGB, drag and put 6-15 under j1, and set brightness to 50 to avoid glaring.

  4. In control, put j2 under 6-15

6-15

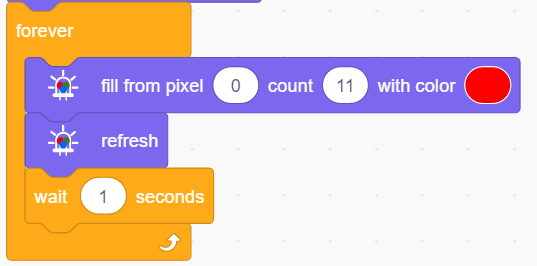

  1. In RGB, put j47 in j2, and set to fill pixel from “0” to “11”, and modify the color to red.

  2. In RGB, add a j47 to refresh the above settings so that ws2812 will light up.

  3. Add a delay of 1S.

6-15

  1. Duplicate 6-15 and set the color to green.

  2. Duplicate again 6-15 and set the color to blue.

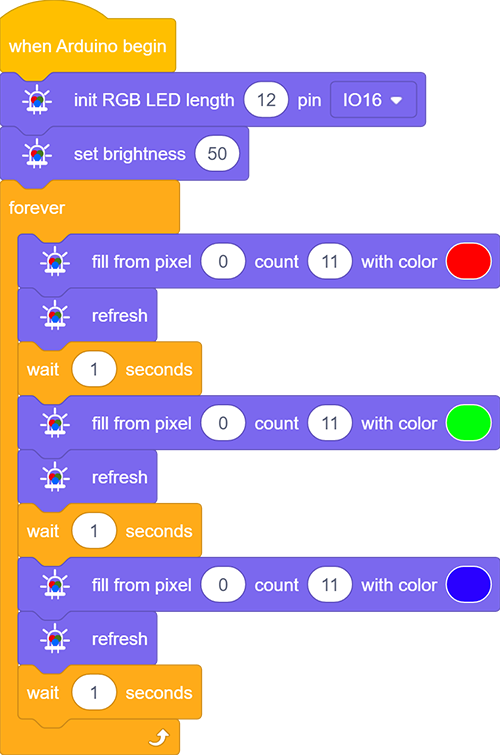

Complete Test Code

6-15-5-1

3.15.5.2 Test Result

After uploading code, ws2812 repeatedly lights up in red, green and blue with 1s each.
