3.24 Button Control Fan

3.24.1 Overview

In this experiment, we program to control the fan by a button.

3.24.2 Test Code

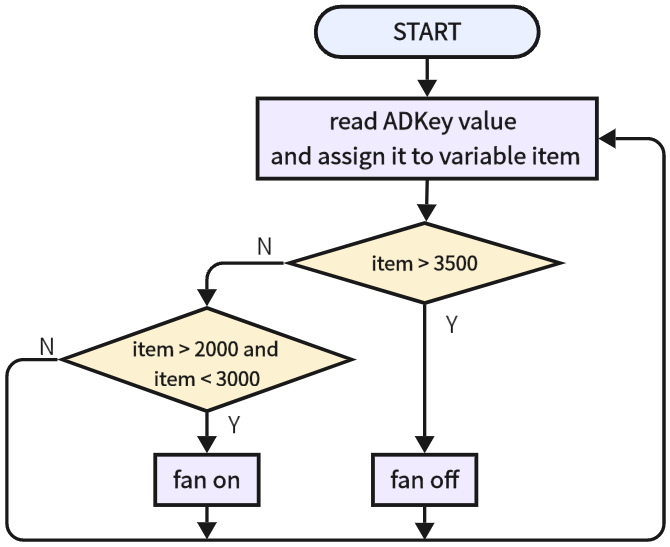

3.24.2.1 Code Flow

6-24-2-1

3.24.2.2 Build Code

There are two ways to upload the code: directly open the code file we provide; or manually build blocks.

Directly open the code file we provide:

  1. Click and choose Load from your computer

  1. We have already downloaded the codes on computer desktop, so open the file and choose 3-24-electricFan.sb3

Manually build blocks:

  1. Build the two basic blocks:

6-1-4-1-1

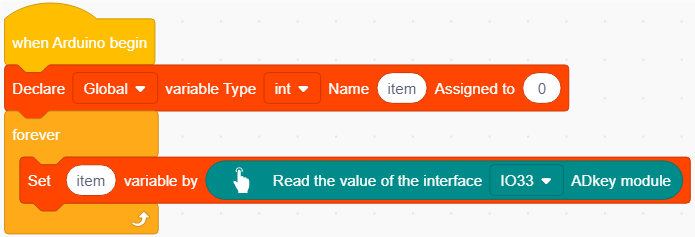

  1. Declare a variable and name to item, and assign the analog value read by ADKey to it.

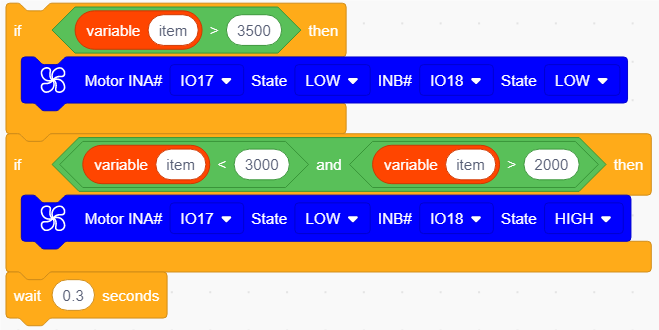

  1. Add a j25 to determine the value of item. When item > 3500 (the red button is pressed), the fan stops. When item > 2000 & item < 3000 (the yellow button is pressed), the fan rotates.

  2. At last, add a delay of 0.3s.

6-24

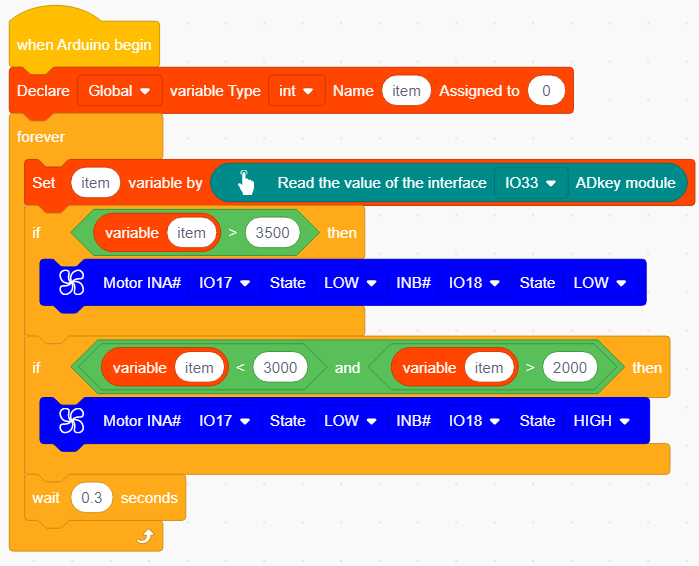

Complete Test Code

6-24

3.24.2.3 Test Result

After uploading code, when we press the yellow button, the fan will turn on. When we press the red button, the fan stops working.
