3.36 WiFi Control
3.36.1 Overview
We control LED, servo and the fan on the web page button wirelessly.
3.36.2 Test Code
In Files, open 3-36-wifi-WebpageControl.py and click
.
Code:
'''
* Filename : 3-36-wifi-WebpageControl
* Thonny : Thonny 4.1.4
* Auther : http//www.keyestudio.com
'''
import network
import socket
import time
import machine
from machine import Pin, PWM
from servo import Servo
# WiFi connection information
SSID = 'test1' # your WiFi name
PASSWORD = '88888888' # your WiFi password
# initialize executer
ledRed = Pin(23, Pin.OUT)
ledYellow = Pin(26, Pin.OUT)
ledGreen = Pin(27, Pin.OUT)
servo = Servo(pin=25)
MA = Pin(18, Pin.OUT)
MB = Pin(17, Pin.OUT)
# connect to WiFi
def connect_wifi(ssid, password):
wlan = network.WLAN(network.STA_IF)
wlan.active(True)
wlan.connect(ssid, password)
timeout = 10
while not wlan.isconnected() and timeout > 0:
print("Connecting to WiFi...")
time.sleep(1)
timeout -= 1
if not wlan.isconnected():
raise Exception("Could not connect to WiFi")
print('Network config:', wlan.ifconfig())
print('Connected to WiFi, IP address:', wlan.ifconfig()[0])
return wlan
# create HTML page
def web_page():
html = """<html>
<head>
<title>ESP32 Control</title>
<style>
body { font-family: Arial, sans-serif; text-align: center; }
button { padding: 10px 20px; font-size: 16px; margin: 10px; }
</style>
<script>
function sendRequest(action) {
var xhr = new XMLHttpRequest();
xhr.open("GET", "/" + action, true);
xhr.send();
}
</script>
</head>
<body>
<h1>ESP32 Control</h1>
<button onclick="sendRequest('ledRed_on')">LED Red ON</button>
<button onclick="sendRequest('ledRed_off')">LED Red OFF</button><br>
<button onclick="sendRequest('ledYellow_on')">LED Yellow ON</button>
<button onclick="sendRequest('ledYellow_off')">LED Yellow OFF</button><br>
<button onclick="sendRequest('ledGreen_on')">LED Green ON</button>
<button onclick="sendRequest('ledGreen_off')">LED Green OFF</button><br>
<button onclick="sendRequest('servo_left')">Servo 0</button>
<button onclick="sendRequest('servo_right')">Servo 180</button><br>
<button onclick="sendRequest('fan_on')">Fan ON</button>
<button onclick="sendRequest('fan_off')">Fan OFF</button>
</body>
</html>"""
return html
# Control actuator
def handle_request(request):
if 'ledRed_on' in request:
ledRed.value(1)
elif 'ledRed_off' in request:
ledRed.value(0)
elif 'ledYellow_on' in request:
ledYellow.value(1)
elif 'ledYellow_off' in request:
ledYellow.value(0)
elif 'ledGreen_on' in request:
ledGreen.value(1)
elif 'ledGreen_off' in request:
ledGreen.value(0)
elif 'servo_left' in request:
servo.set_angle(0) # rotate to left
elif 'servo_right' in request:
servo.set_angle(180) # rotate to right
elif 'fan_on' in request:
MA.value(1)
MB.value(0)
elif 'fan_off' in request:
MA.value(0)
MB.value(0)
# Start the Web server
def start_server():
wlan = connect_wifi(SSID, PASSWORD)
addr = socket.getaddrinfo('0.0.0.0', 80)[0][-1]
s = socket.socket()
s.bind(addr)
s.listen(5)
print('Listening on', addr)
while True:
cl, addr = s.accept()
print('Client connected from', addr)
request = cl.recv(1024)
request = str(request)
print('Content = %s' % request)
handle_request(request)
response = web_page()
cl.send('HTTP/1.1 200 OK\n')
cl.send('Content-Type: text/html\n')
cl.send('Connection: close\n\n')
cl.sendall(response)
cl.close()
# run server
try:
start_server()
except Exception as e:
print('Failed to start server:', e)
machine.reset()
Result:
Upload the code, and the Shell shows the IP address after connecting to wifi.

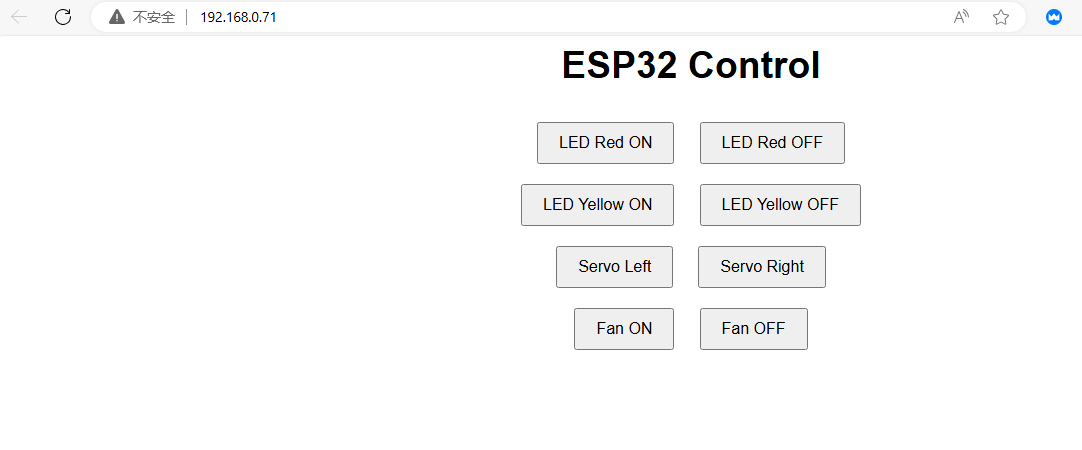

Connect your computer/mobile phone and ESP32 to the same wifi, and you can access the IP address to see the control page through your device.
