3.36 wifi Piano
3.36.1 Overview
In this project, we set seven buttons to control the speaker to play tones of Do, Re, Mi, Fa, So, La, Si.
3.36.2 Test Code
You can manually build blocks, or directly open the code file we provide: 3-36-Web Piano Panel.ubp. If you have any questions about how to open code files or upload code, please back to 1.9 Upload Code.
Build code blocks:
In
, drag
to the script area.Drag
and set the WIFI name to “LiuTest” and password to “88888888”.Drag
and set the Web name to “CodingBox.local”.Add
to refresh the data of each sensor on the Web page.Use
and set the title to “Coding Box Web Piano”.Use
to add a button that controls the speaker and set the label to “Do”.In
, drag
to “copy callable name”, and paste it to the blank behind the “with selector” of the
. Click
to add a “params” blank.In
, drag
and click to add one more blank. Put it into the “params” blank of the
, and modify “cat” to “100”, “dog” to “300”.
Similarly, set tones of Re, Mi, Fa, Sol, La, Si.

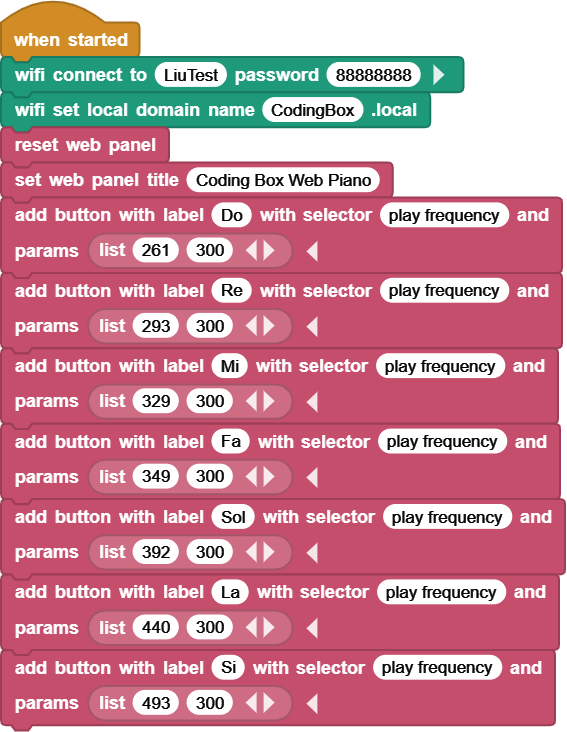

Complete code:
3.36.3 Test Result
Connect the coding box to the MicroBlocks via USB or Bluetooth. Click
to upload code. After connecting to wifi, you can see an IP address:

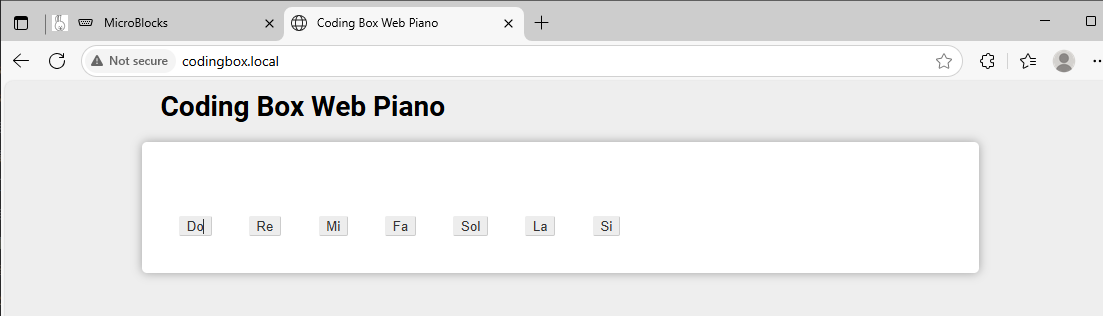

. Now connect your control device (mobile phone, tablet, computer) to the same wifi and search codingbox.local on the browser to enter the Web page.
Click the corresponding button on the Web page, the speaker will play the related tone.
