Project 01: Seesaw

1. Overview

It is well known that seesaw is sought-after among children. Usually, two children sit on both ends of the seesaw and step on the ground in turn to make one end rise and the other fall. However, in this project, we will work to make a seesaw that can rise and fall automatically.

2. Components

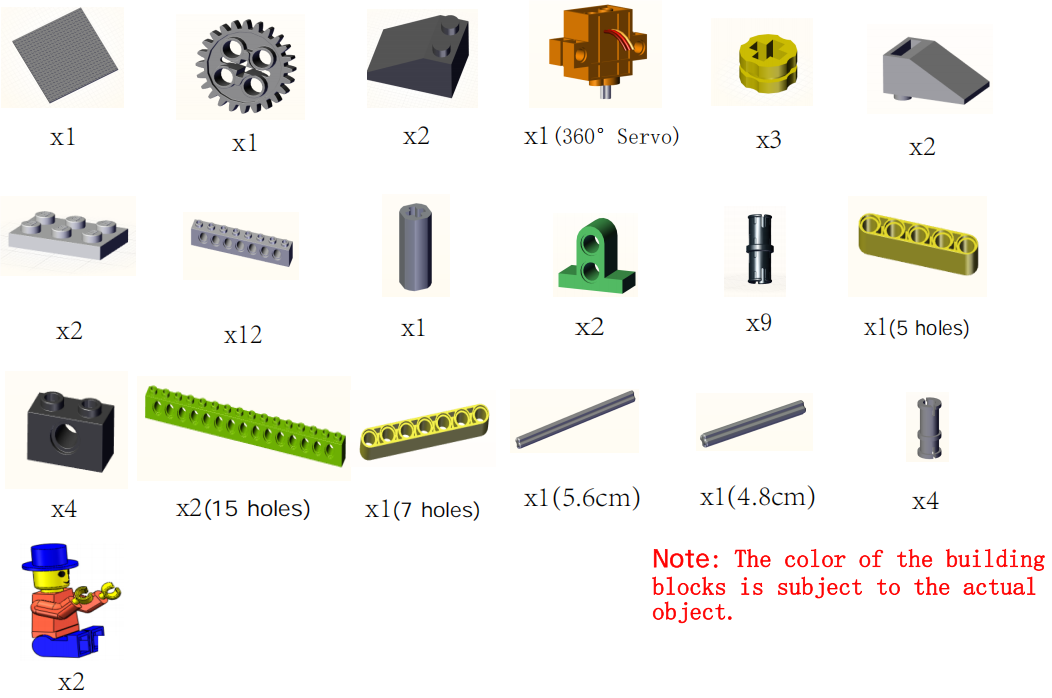

Kidsuno Mainboard×1	360°Servo×1	USB Cable×1	Lego Series×1

3. Make A Seesaw

4. Installation

Preparation：

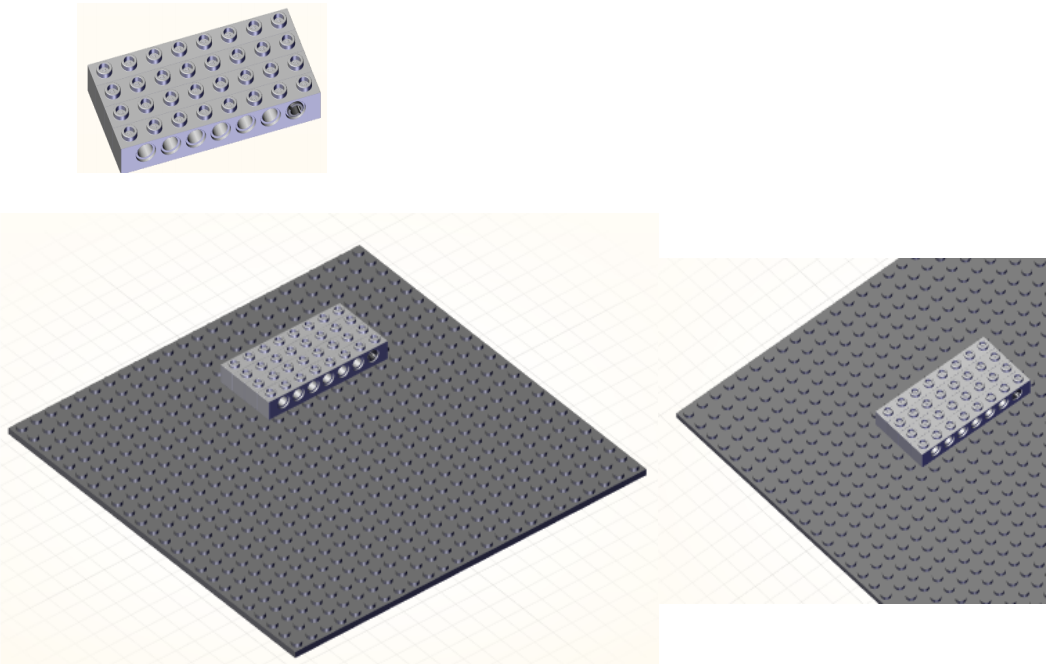

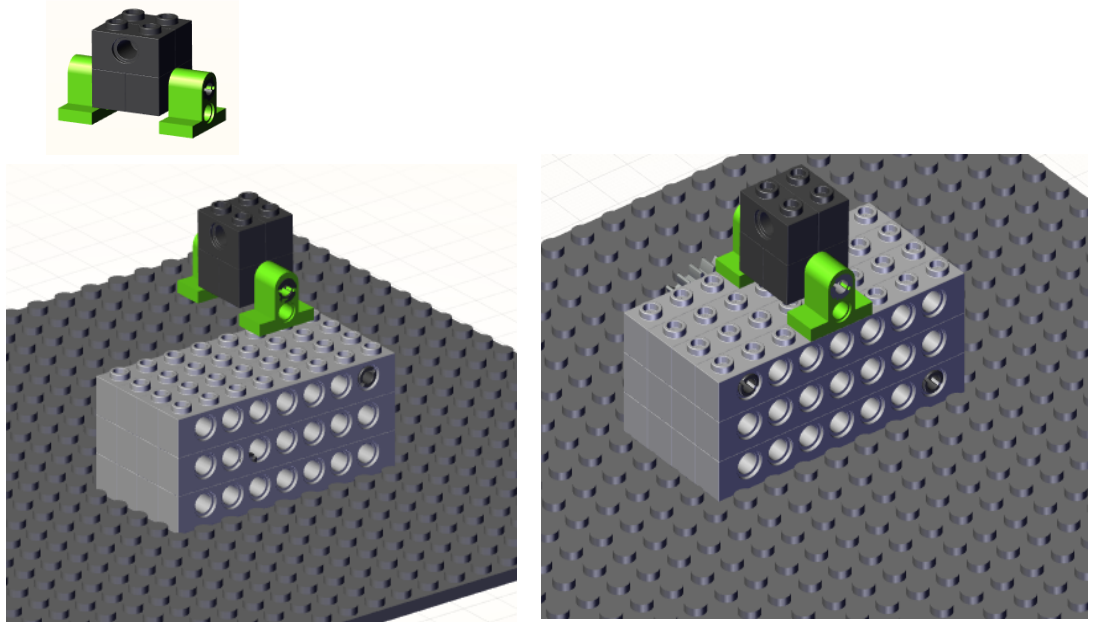

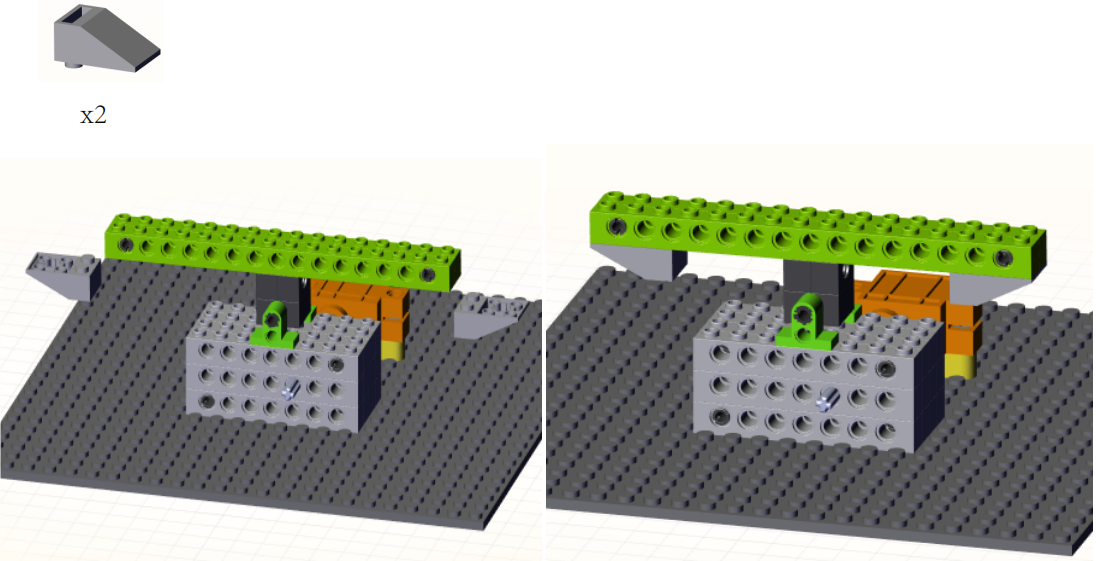

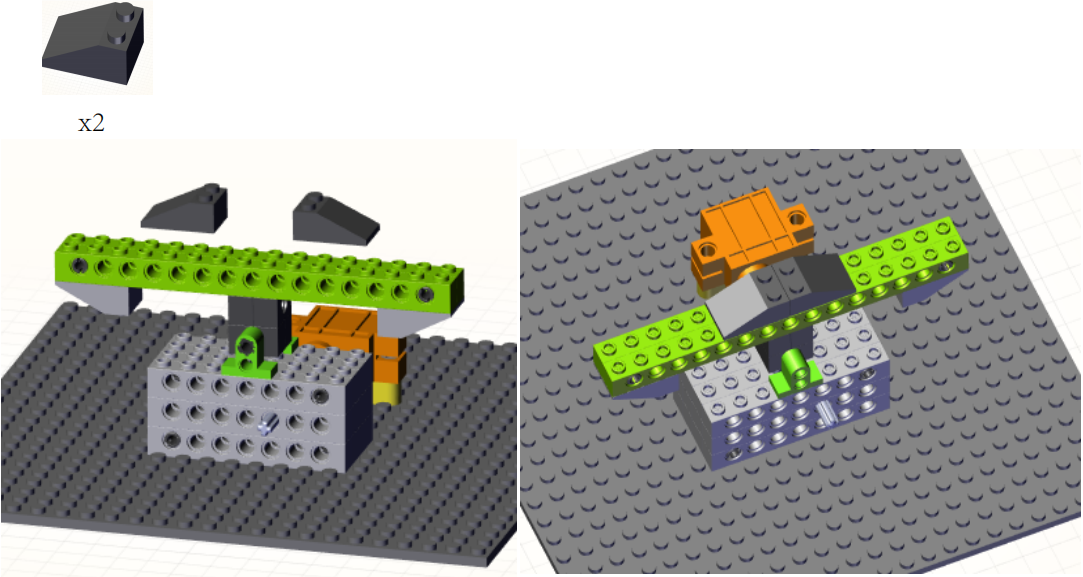

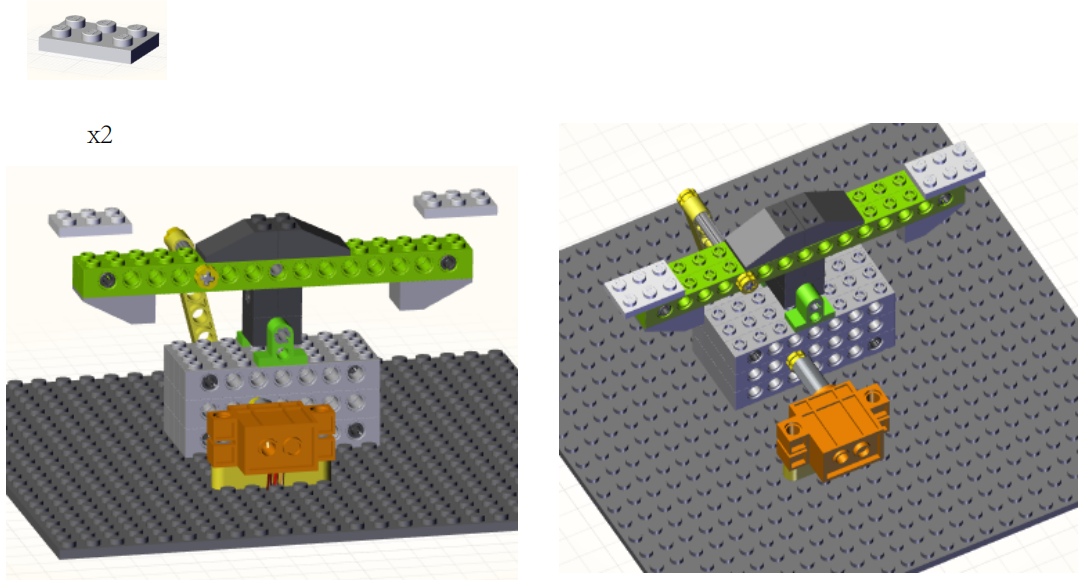

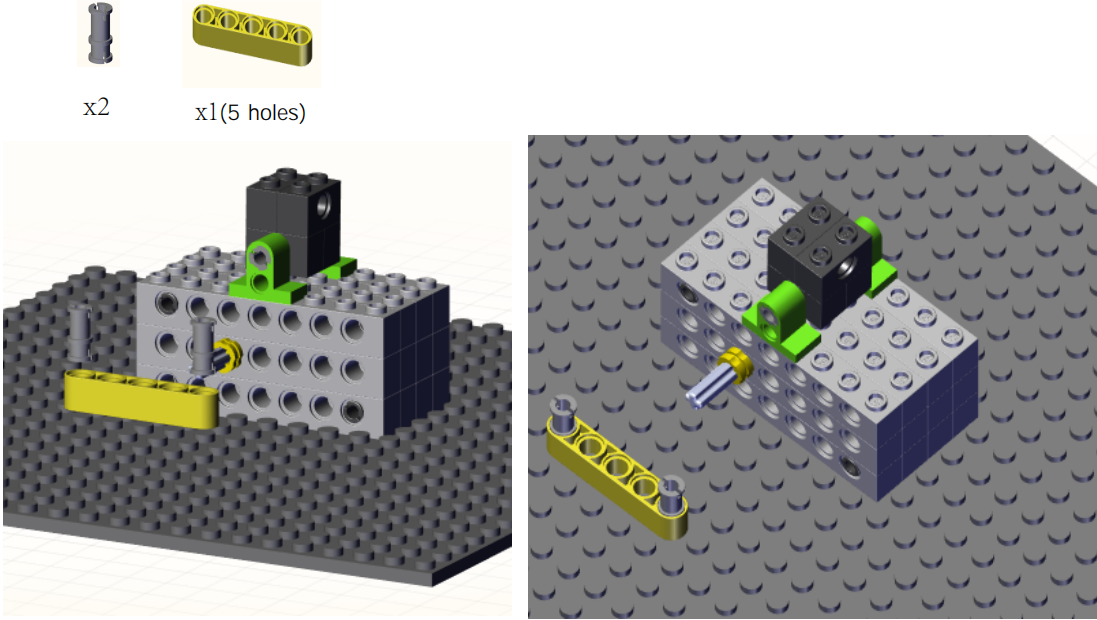

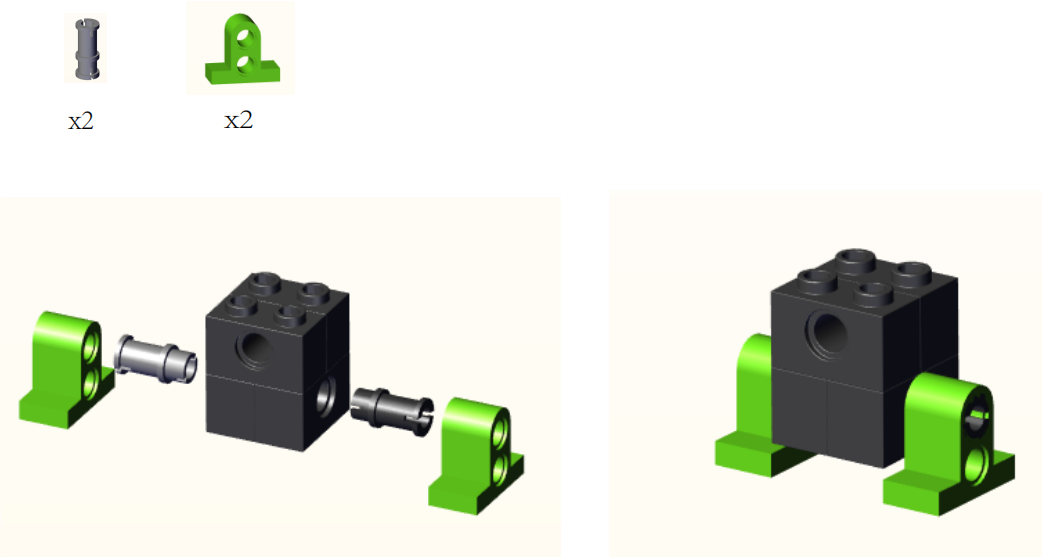

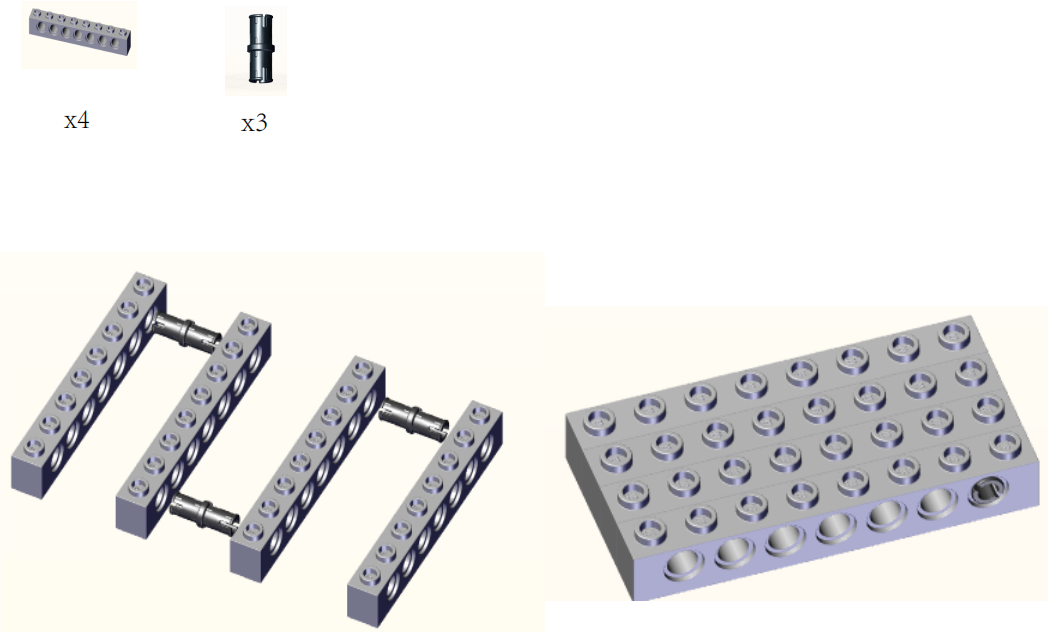

Step1:

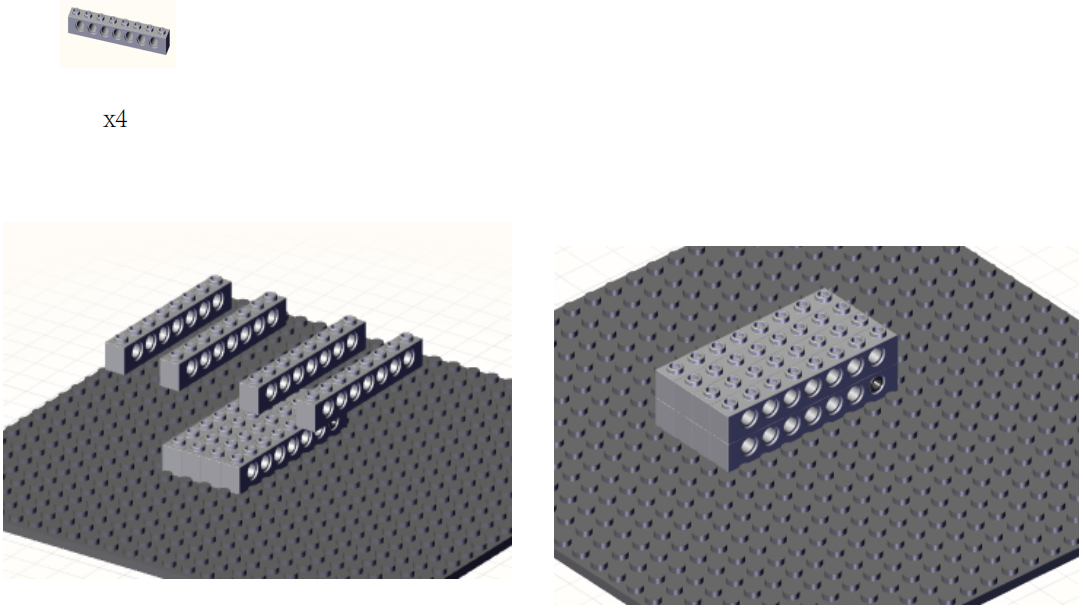

Step2:

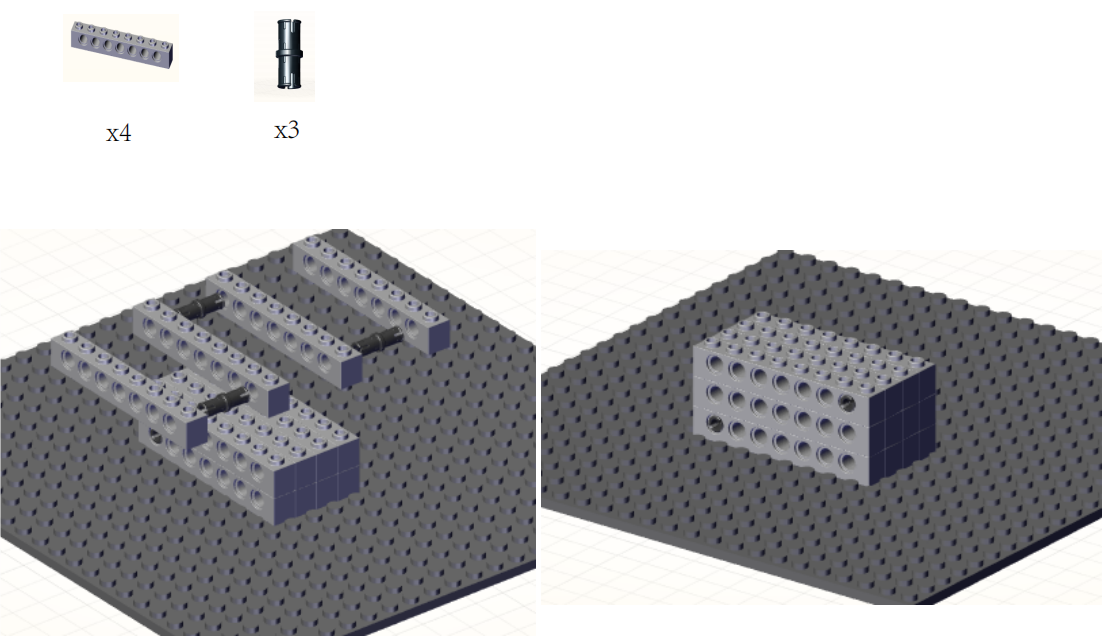

Step3:

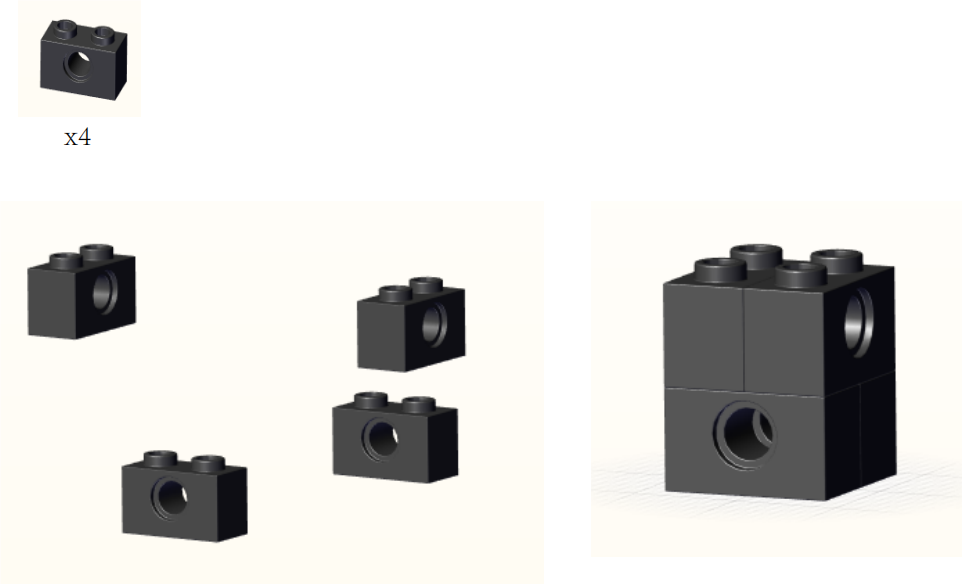

Step4:

Step5:

Step6:

Step7:

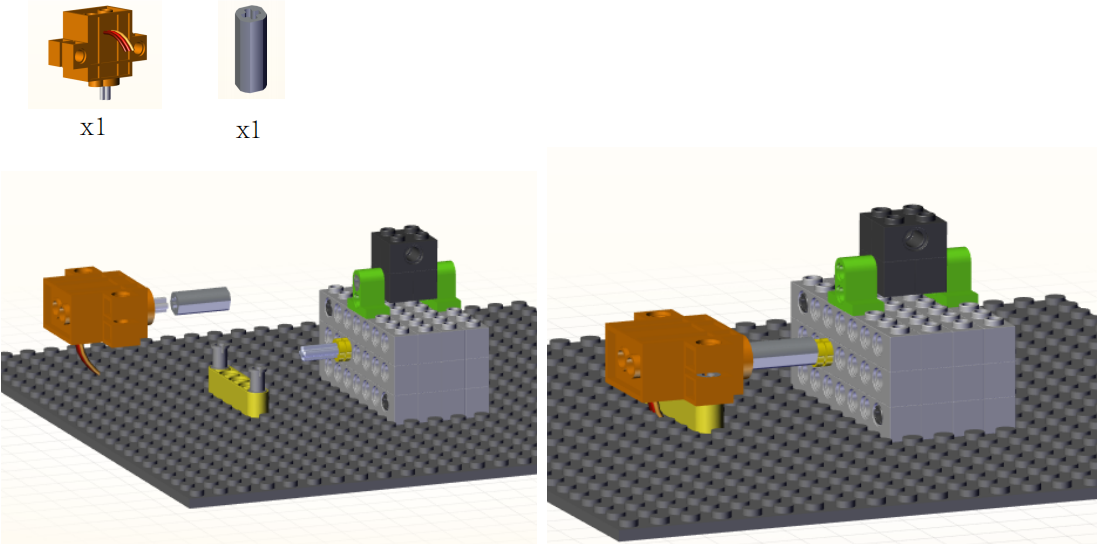

Step8:

Step9:

Step10:

Step11:

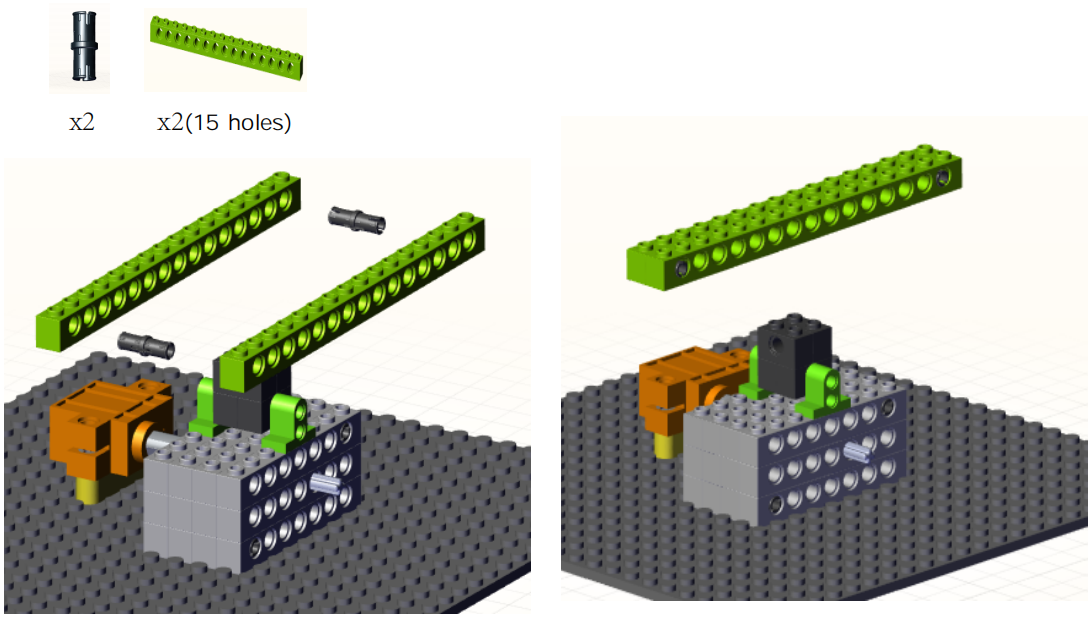

Step12:

Step13:

Step14:

Step15:

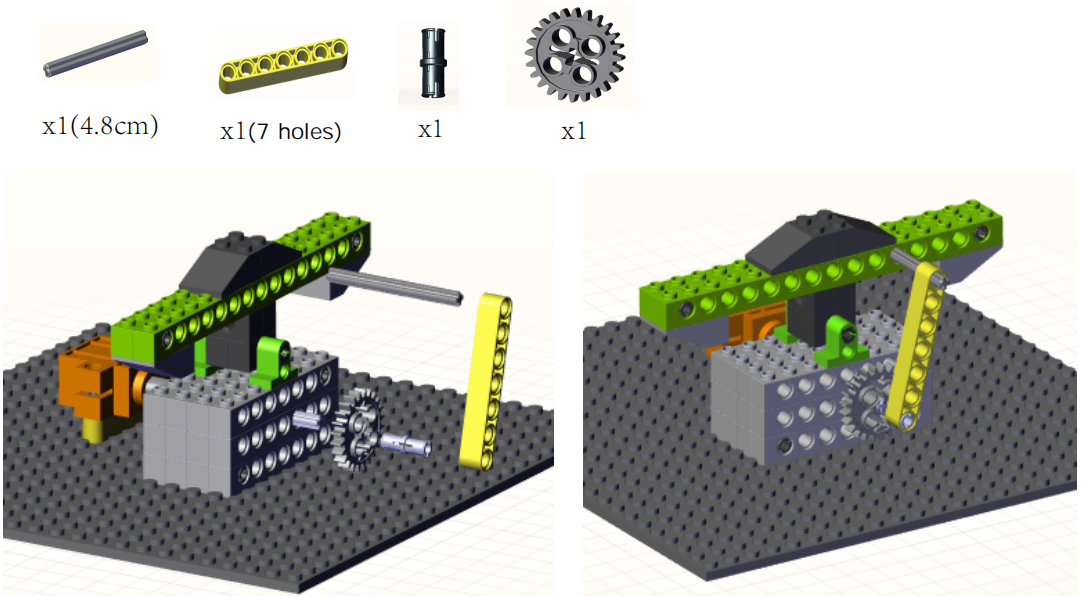

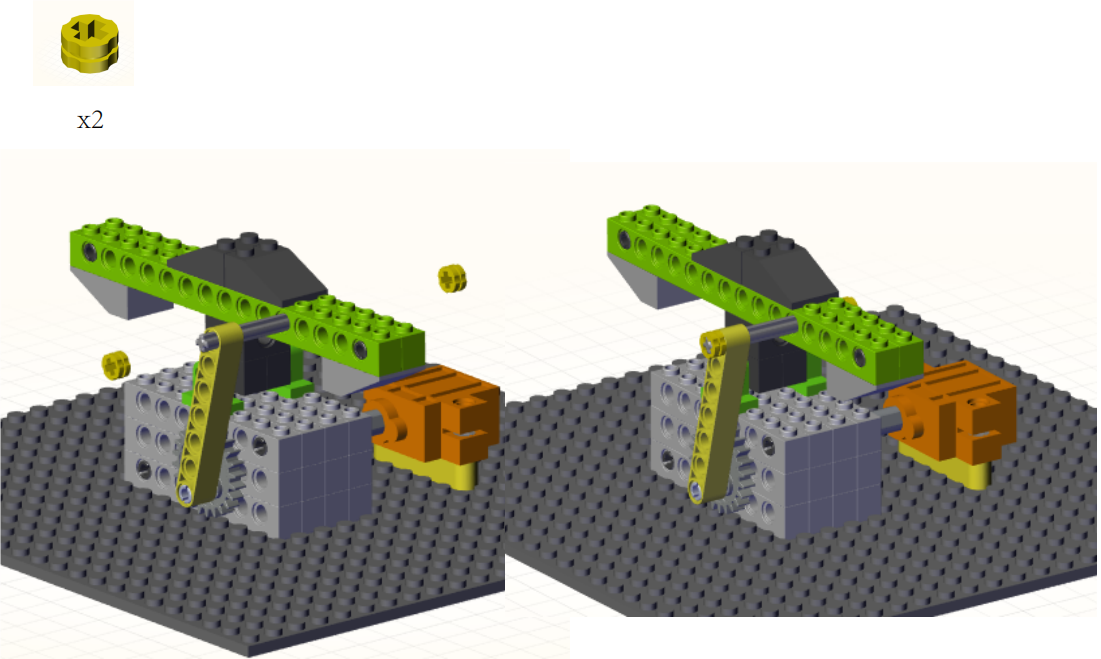

Step16:

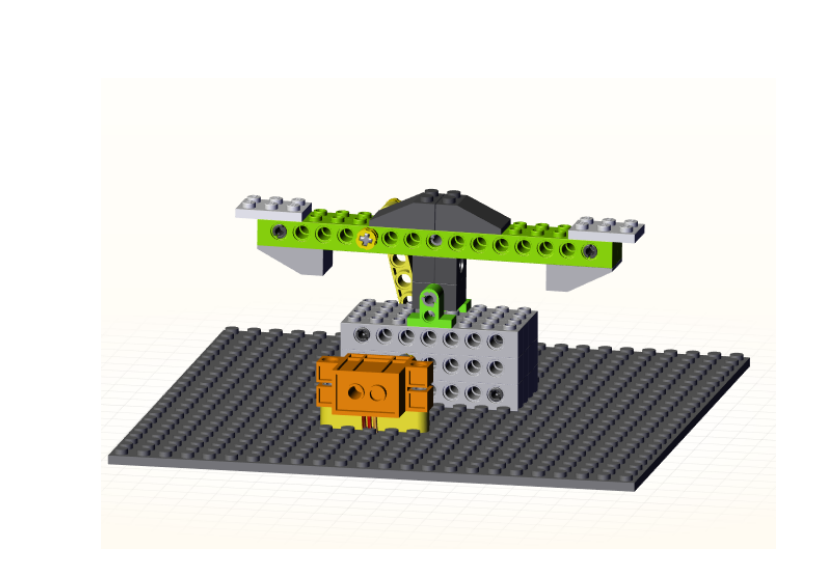

Complete:

5. Programming Steps

Step1：Wiring Diagram

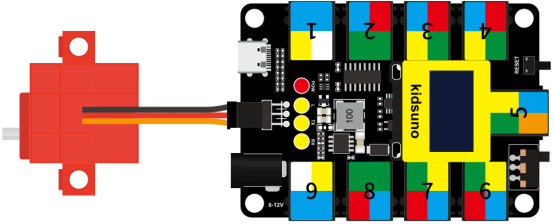

Connect the kidsuno mainboard and computer via a USB cable, and connect the 360° servo to the G, V and D13 interface of the mainboard. The brown wire is connected to G, the red wire is connected to V and the orange wire is connected to D13.

Step2：Add Servo

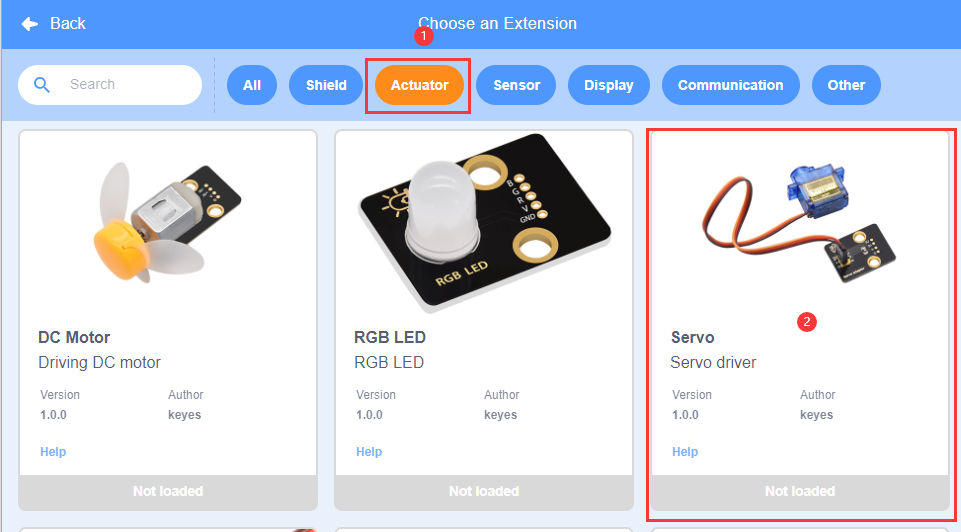

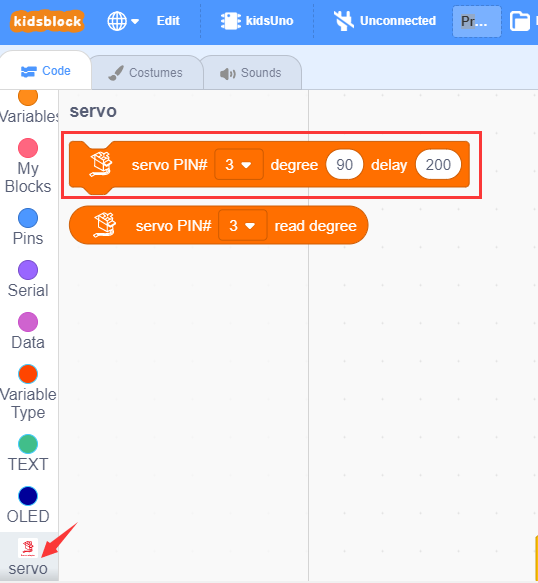

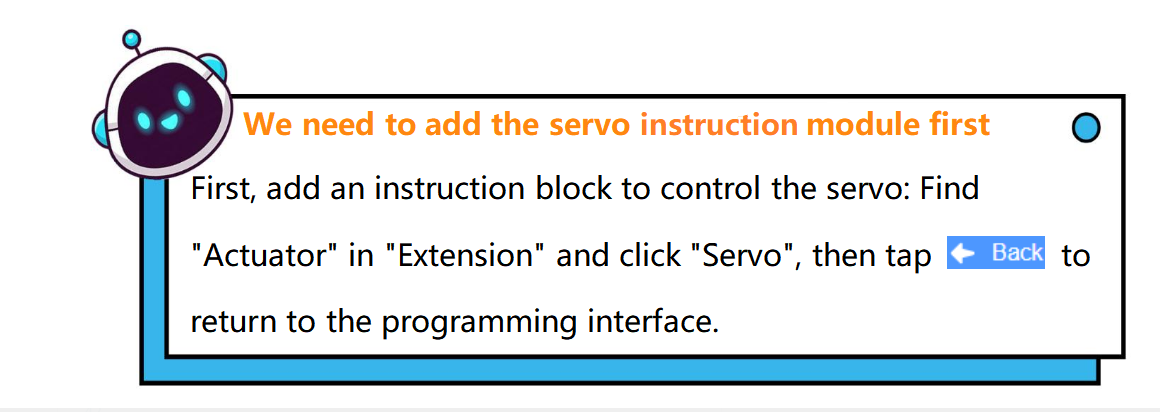

Diagram of the Extension Instruction Block

Add Servo Instruction Block

Step3: Description of Building Blocks

Set the angle value and delay to the specified pin. When the angle value is 90, the servo will stop rotating; if it is 0 ~ 90, the servo will rotate clockwise, the smaller the value, the faster the rotation speed; if it is 90 ~ 180, the servo will rotate counterclockwise, the larger the value, the faster the rotation speed.

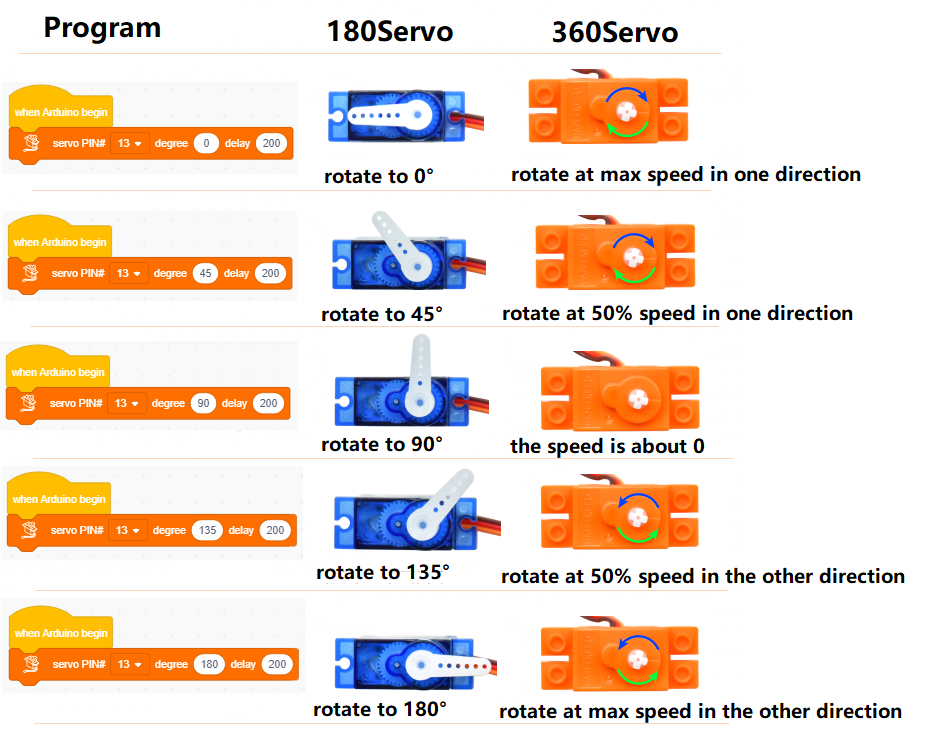

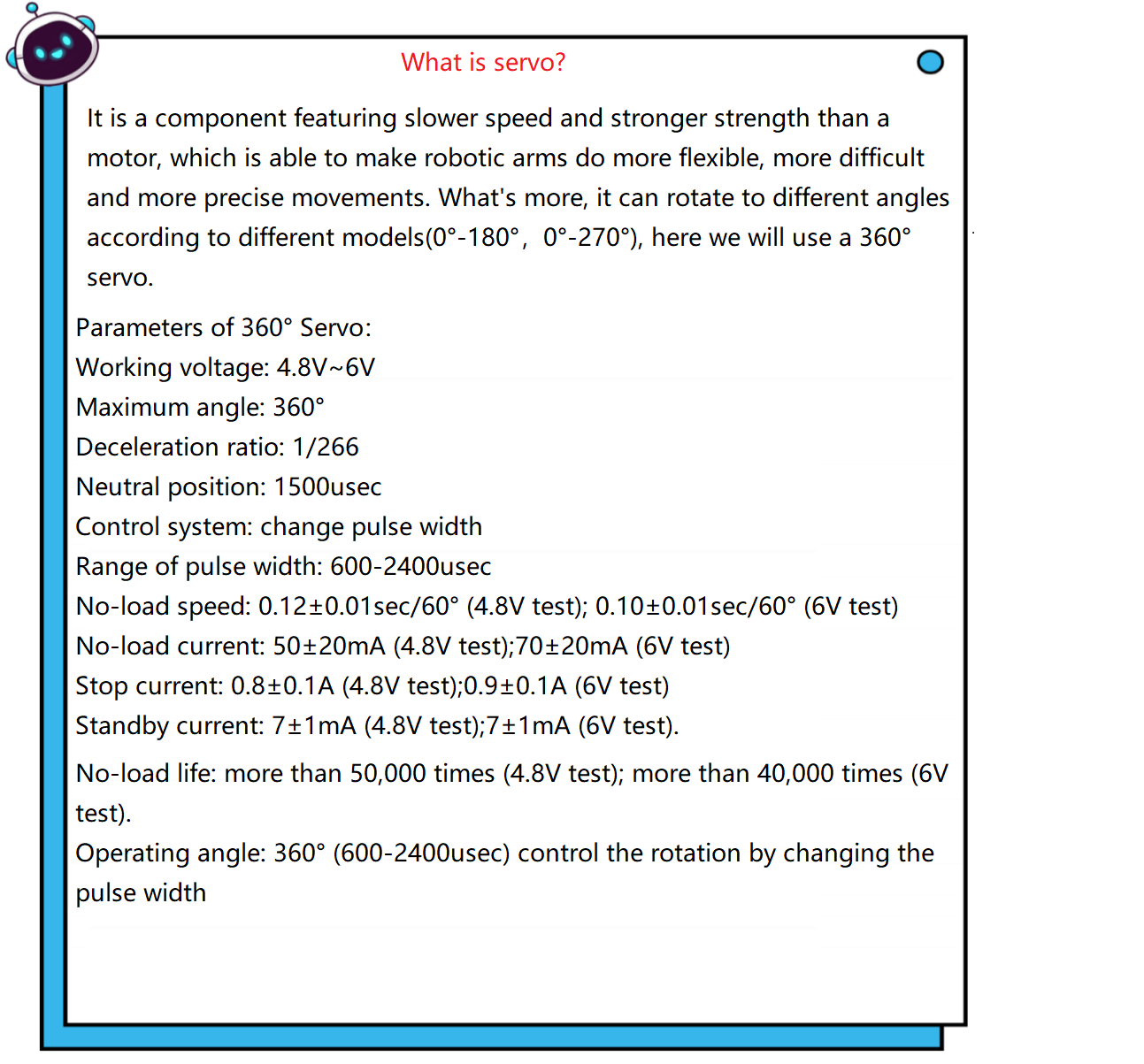

Rotation of 180° Servo and 360° Servo ：

Step4：Write the Program

① Drag the instruction block in the Events module to the script area.

② Drag the instruction blockin the Servo module to the script area. Since the servo is connected to the G, V and D13 interface of the mainboard(The brown wire is connected to G, the red wire is connected to V and the orange wire is connected to D13), then change the number 3 to 13 and angle to any value within the range of 0 ~ 90 or 90 ~ 180. To make the servo rotate slowly, the angle value entered here is 60.

③ Complete Program

Step5：Test Result

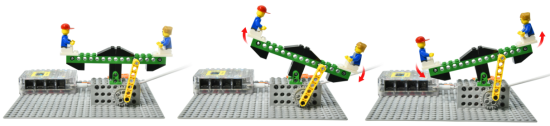

Clickto upload the complete program to the kidsuno mainboard and power up, then the seesaw can rise and fall automatically.

6. Expansion Project

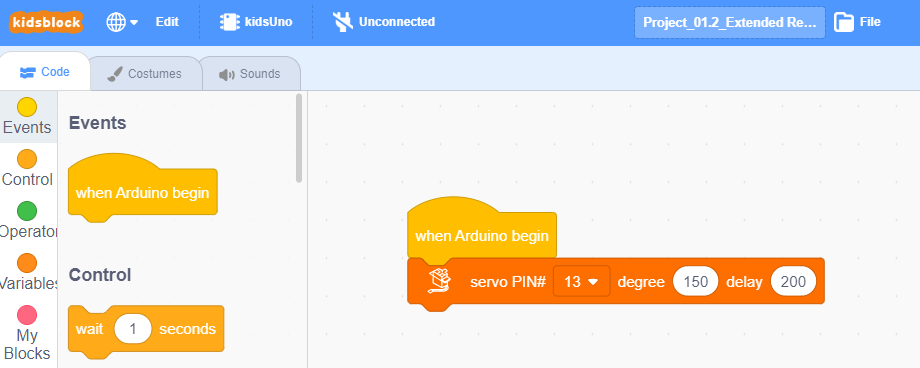

The sample code is below：
